Description

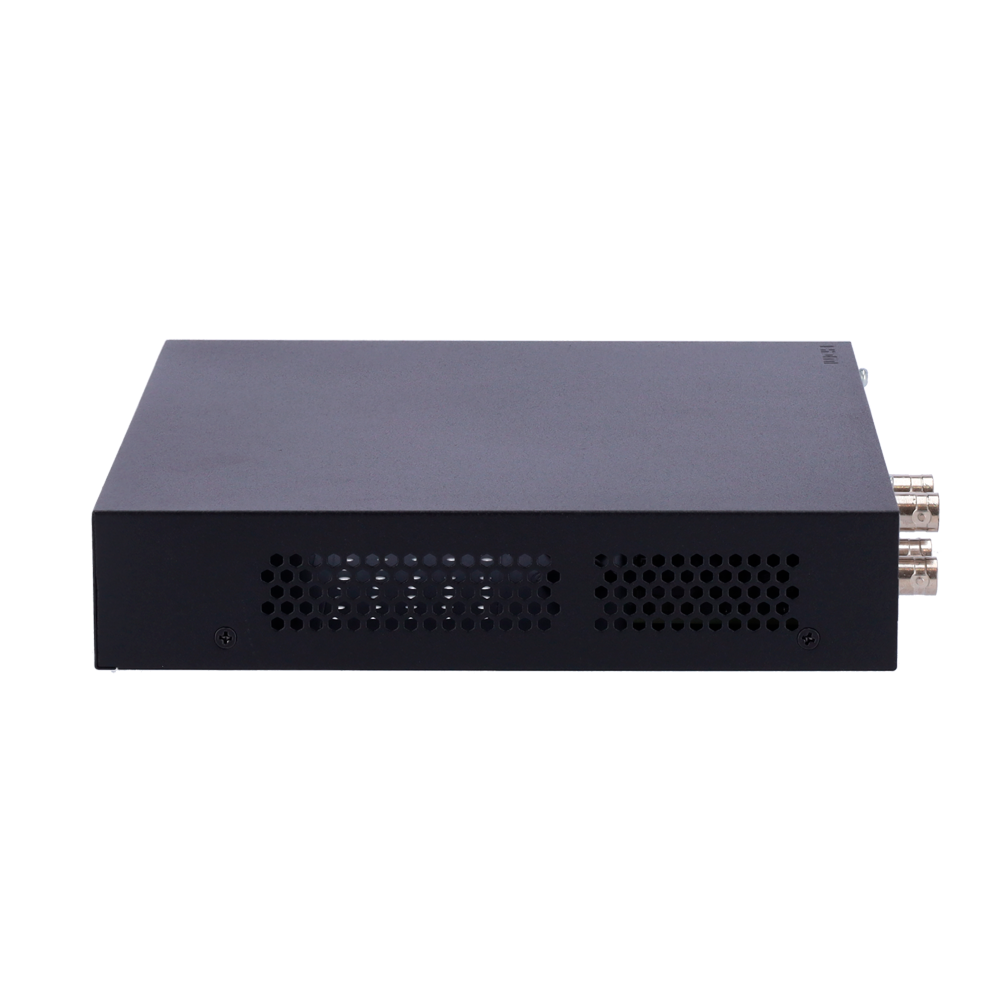

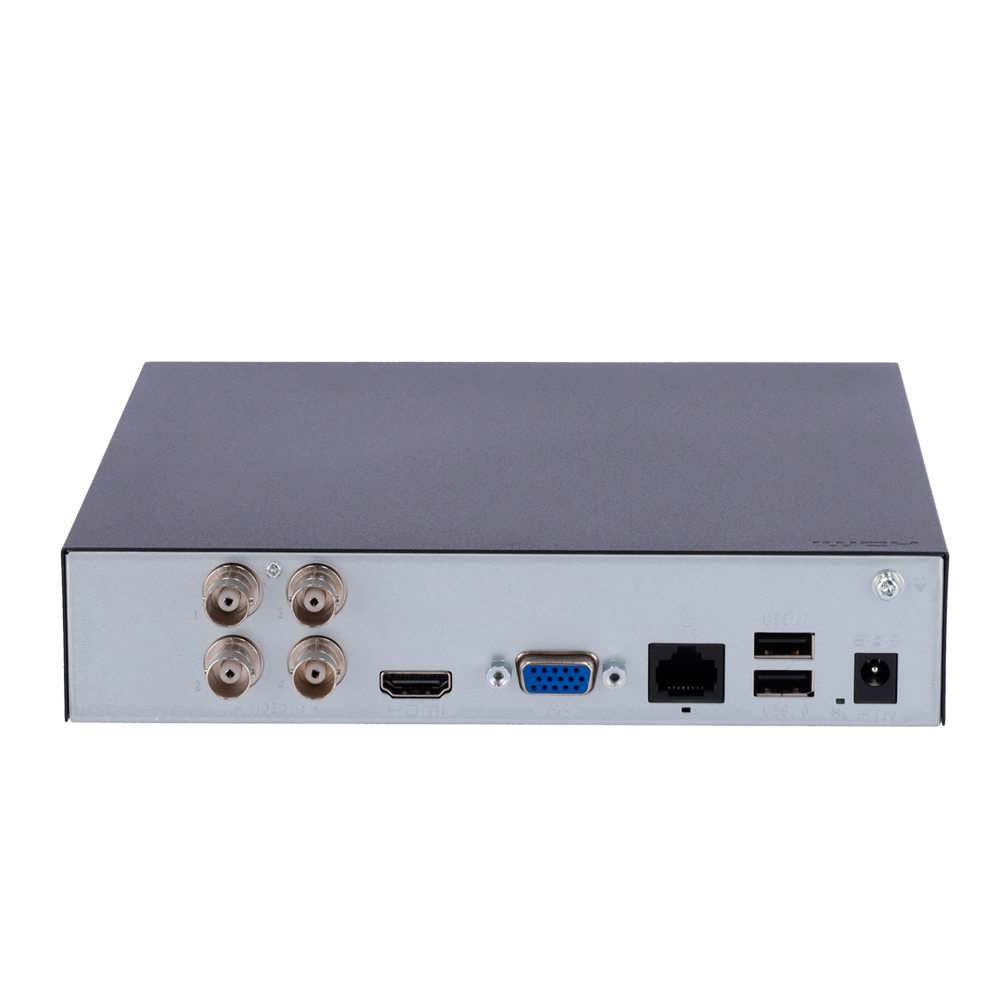

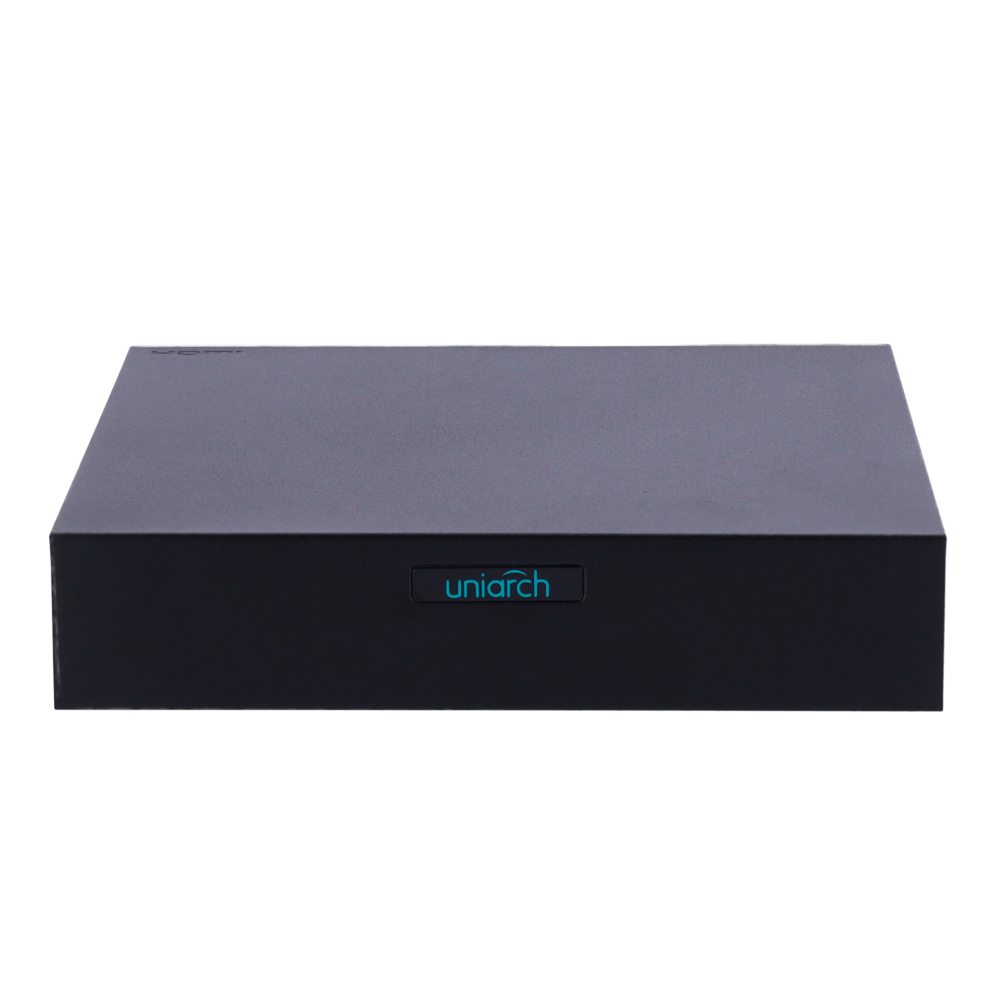

The Uniview (Uniarch) XVR-104G3 is a compact 4-channel hybrid video recorder designed for small CCTV installations such as homes, shops, and offices. It supports multiple camera technologies (AHD, TVI, CVI, CVBS, and IP), allowing flexible system upgrades without replacing existing cameras. The recorder uses H.265 compression to reduce storage usage and supports remote monitoring through mobile or PC applications.
Key Features
4 Channel DVR – Connect up to 4 analog cameras
5MP Camera Support – Up to 5MP Lite recording
Hybrid System – Works with AHD / TVI / CVI / CVBS / IP cameras
H.265 Video Compression – Saves storage space
Remote Viewing – Mobile and PC monitoring
HDMI & VGA Output – Full HD display support
Audio Support – Audio over coax (TVI cameras)
1 SATA HDD Support – Up to 8TB storage
The device supports multiple camera formats and can also replace analog channels with IP channels for flexible system expansion.
Technical Specifications
Model: XVR-104G3
Channels: 4 Channel
Max Camera Resolution: 5MP (Lite mode)
Video Output: HDMI, VGA (up to 1080p)
Storage: 1 SATA HDD (Up to 8TB)
USB Ports: 2 × USB
Network: RJ45 Ethernet
Power: 12V DC
Weight: ~1.1 kg
The recorder supports recording resolutions such as 5MP Lite, 4MP, 1080P, and 720P depending on camera capability.
