Description
Please Click this like to view Datasheet
Standard&Protocol
IEEE 802.3、 IEEE 802.3u、IEEE 802.3x、IEEE802.3ab、IEEE 802.3af、IEEE 802.3at
MTBF
≥50,000 hours(about 5 years)
Indicator
Link/Act, PoE Status, Power, 1000M

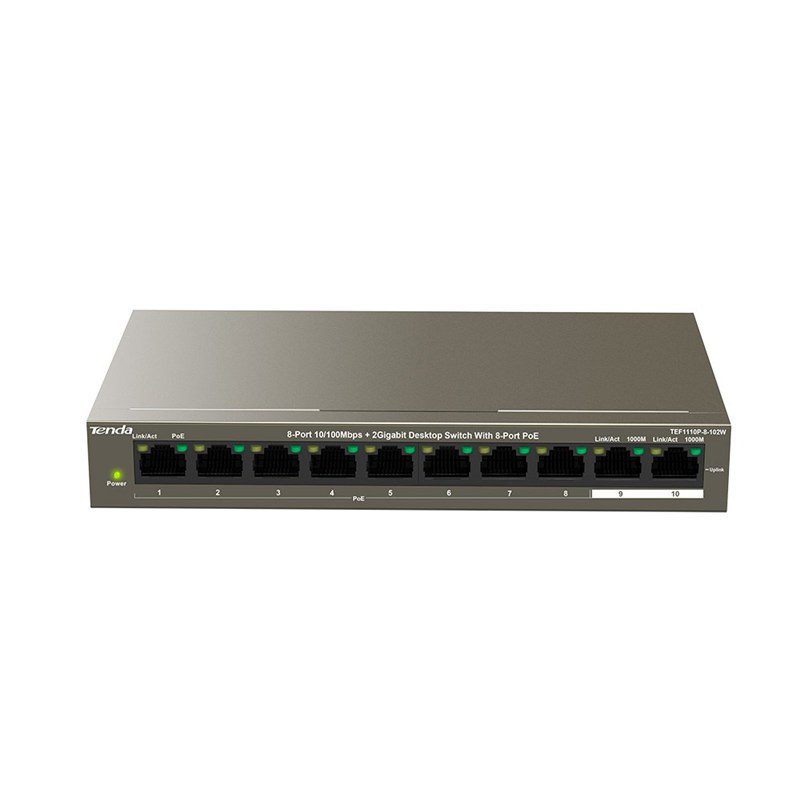

Fixed Port
8* 10/100Base-TX RJ45 Ports(Data/Power)
2*10/100/1000Base-T RJ45 Port(Data)
2*10/100/1000Base-T RJ45 Port(Data)
Lightning Protection
6KV
Wire-speed forwarding
Support
Switching Capacity
5.6 Gbit/s
MAC Address Table
16K MAC
PoE supply management
Port 1 to Port 8 support standard IEEE802.3at/af power( maximum power for each port is 30W)，PoE power type is end-span(1245+, 3678- line pair)
in full configuration：<102W
PoE Max Power Supply：99W
in full configuration：<102W
PoE Max Power Supply：99W
Dimension
177.5mm*104mm*26mm
Input Voltage
AC：100－240V～ 50/60Hz
DC：51V /2.1A （Power Adapter ）
DC：51V /2.1A （Power Adapter ）
Environment
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

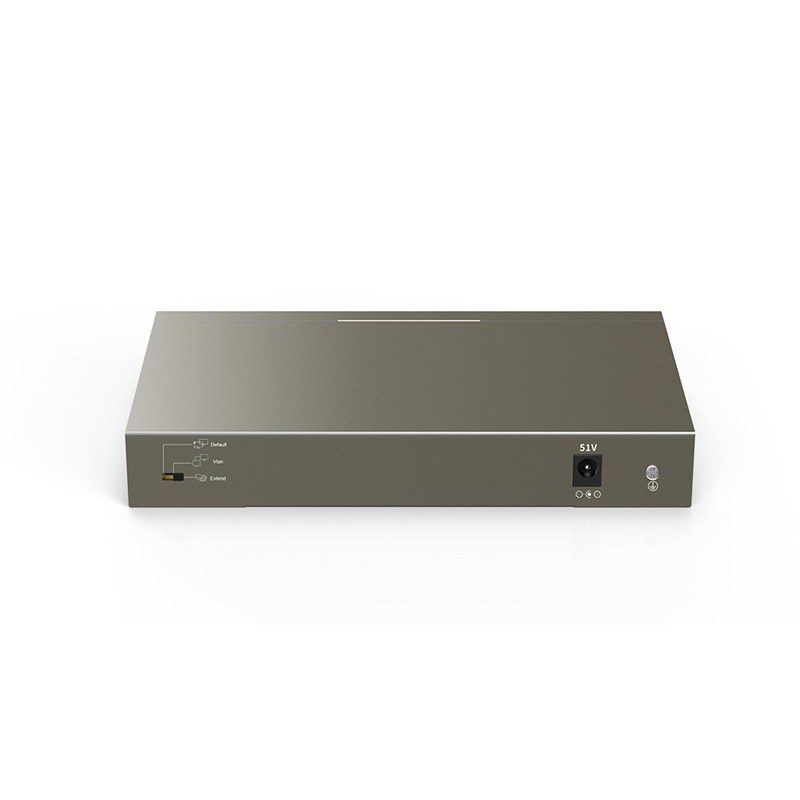

One-key Mode
Default Mode: If Default mode is enabled, the device works as a general switch and all ports support 10/100Mbps auto-negotiation.
VLAN Mode: 1-8 port can be isolated each other but 1-8 port can connect to 9/10 port after open VLAN to stop broadcast storm to increase forwarding rate of frame.
Extend Mode: If Extend mode is enabled, VLAN isolation is enabled. Port 1-4 will be isolated respectively (10Mbps auto-negotiation), but can communicate with the Uplink port. And the delivery distance of powering and network data is up to 250m (10Mbps).
VLAN Mode: 1-8 port can be isolated each other but 1-8 port can connect to 9/10 port after open VLAN to stop broadcast storm to increase forwarding rate of frame.
Extend Mode: If Extend mode is enabled, VLAN isolation is enabled. Port 1-4 will be isolated respectively (10Mbps auto-negotiation), but can communicate with the Uplink port. And the delivery distance of powering and network data is up to 250m (10Mbps).
Certification
3C、FCC、CE、RHOS
