Original price was: ₹2,000.00.₹1,350.00Current price is: ₹1,350.00.

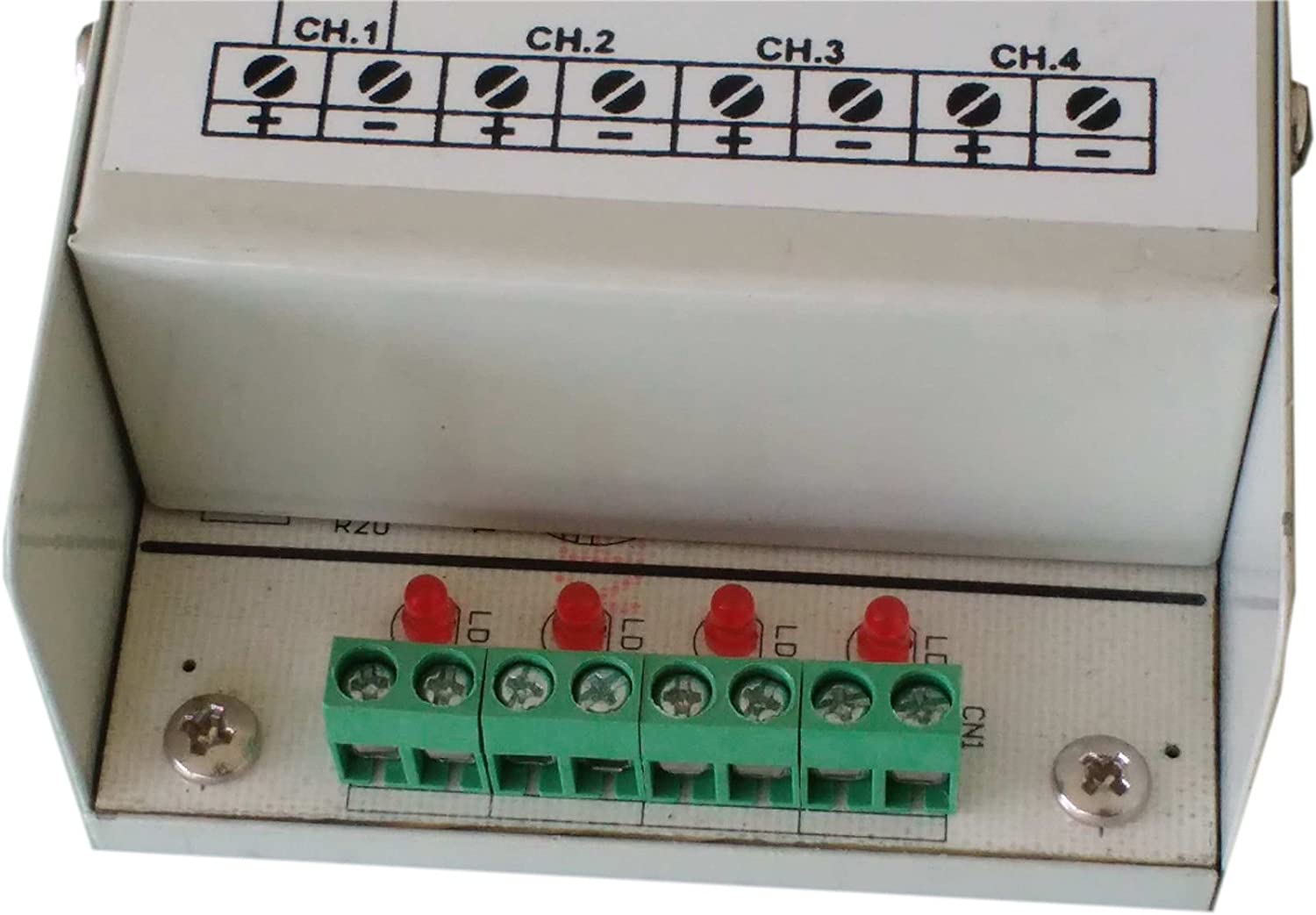

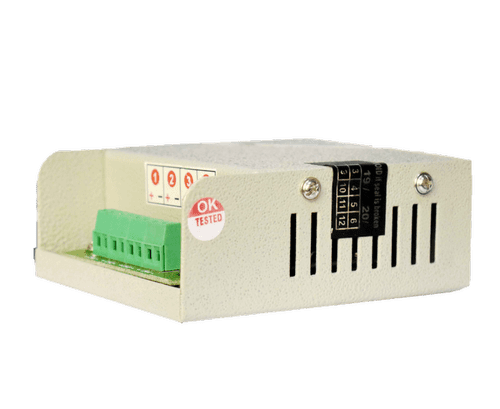

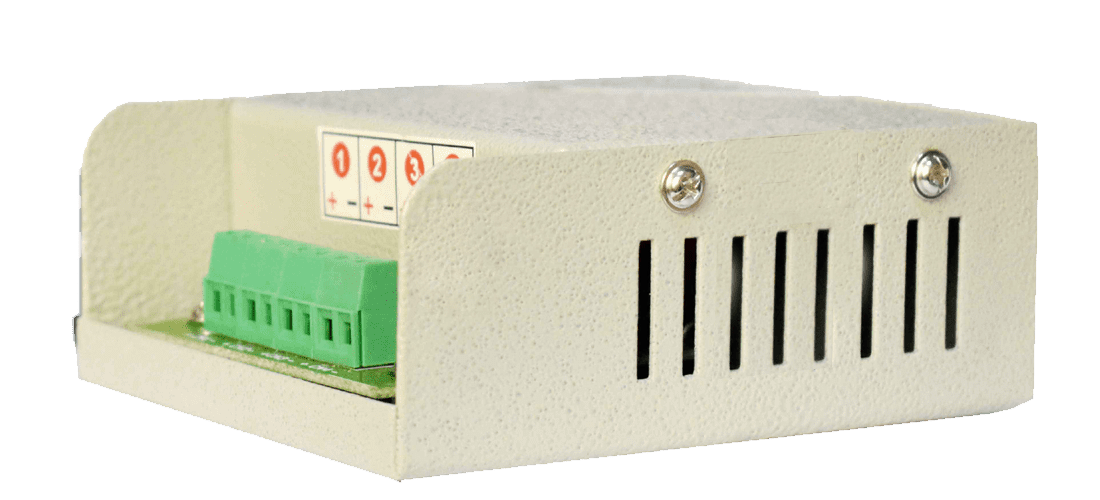

Model No. PS04CN is engineered for CCTV Multi-Output SMPS
for IR Series and Dome Series Camera with 4 heavy duty screw
terminal block, individually protected PTC type fused
(Re-settable) output, individual circuit status LED for each
output & Heavy Metal Enclosure. Application: For 4 IR Camera
up to 24 Led.
4 Output heavy duty screw terminal block.
Thermal Shut down Protection and Recovery.
Individual circuit status LED for each output.
Compact Size, Light Weight, Shock Proof.
Data Sheet:
Out of stock
TECHNICAL SPECIFICATIONS
Input Voltage
Input Frequency
Output Voltage
Output Current
Inrush Current
Output Per Channel
Efficiency @ full load & 230 V AC
Input Operating Temperature
Line Regulation
Load Regulation
Ripple
Isolation Between Input & Output
Input & Earth
Output & Earth
Dimensions: L*W*H
Weight
90-280V AC
45~55Hz
12V DC
2 Amps. Max
2.3 Amps
500mAh
>85%
0~55 °C
<1%
<1%
<50mv p-p
3000V AC
1500V AC
1500V AC
105*90*40 (size are in mm)
400 gm.
| Weight | 1.2 kg |
|---|---|
| Dimensions | 15 × 11 × 4 cm |
| Brand |
