Description

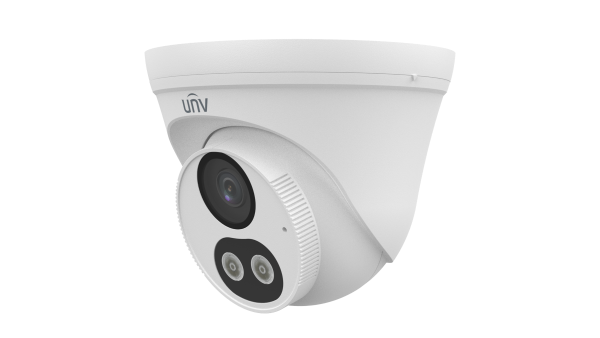

IPC3612LB-AF28K-DL
Camera
Max Resolution 2 MP
Sensor 1/2.9″ CMOS
Min. Illumination Color: 0.005 Lux (F1.6, AGC ON), 0 Lux with light
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment Angle Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360°
S/N >52 dB
WDR DWDR
Lens
Focal Length 2.8 mm
Iris Type Fixed
Iris F1.6
Field of View (H) 101.1°
Field of View (V) 55.0°
Field of View (D) 111.0°
Lens Type Fixed
DORI
DORI Distance (Lens) 2.8 mm
DORI Distance (Detect) 45.0 m (147.6 ft)
DORI Distance (Observe) 18.0 m (59.1 ft)
DORI Distance (Recognize) 9.0 m (29.5 ft)
DORI Distance (Identify) 4.5 m (14.8 ft)
Illuminator
Supplemental Light Dual light
Illumination Distance (IR) 30 m (98.4 ft)
Illumination Distance (Warm Light) 30 m (98.4 ft)
Wavelength 850 nm
IR On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264
H.264 Code Profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps
Sub Stream: 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
Video Bit Rate 128 Kbps to 6144 Kbps
U-code Support(Main stream)
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Support
Video Stream Dual streams
White Balance Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Flip Normal, Flip vertical, Flip horizontal, 180°
Dewarping N/A
HLC Support
BLC Support
Defog Digital defog
Events
Basic Detection Human body detection, Motion detection, Audio detection
General Function Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication
Audio
Audio Compression G.711U, G.711A
Audio Bitrate 64 Kbps
Two-way Audio N/A
Suppression Support
Sampling Rate 8 kHz
Storage
Edge Storage MicroSD, up to 512 GB
Network Storage ANR
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, QoS, SSL/TLS, SNMP
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host Up to 32 users. 3 user levels: administrator, common user and operator
Security Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client EZStation, APP
Web Browser Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Interface
Audio I/O N/A
Alarm I/O N/A
Serial Port N/A
Built-in Mic Support
Built-in Speaker N/A
WIFI N/A
Network 1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output N/A
