Description

Camera

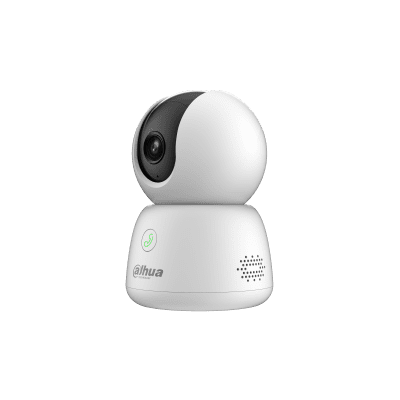

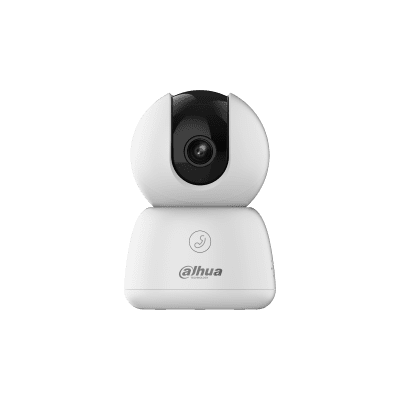

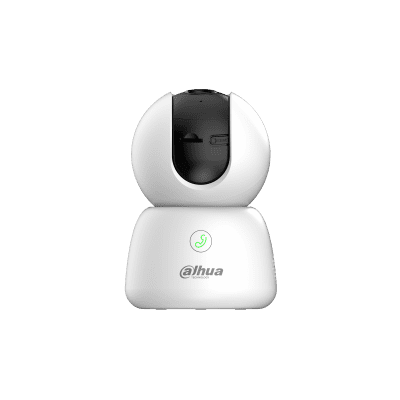

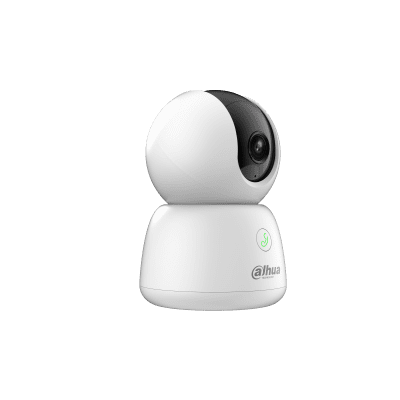

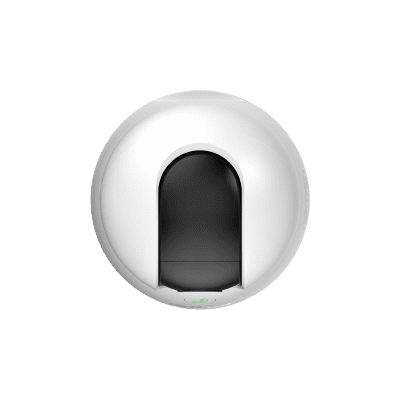

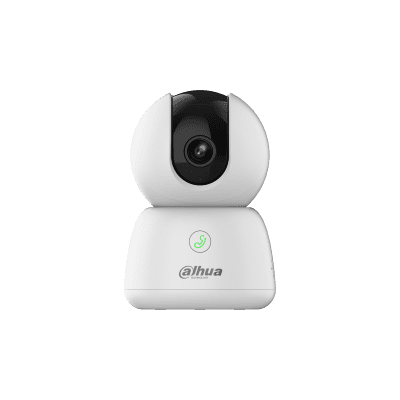

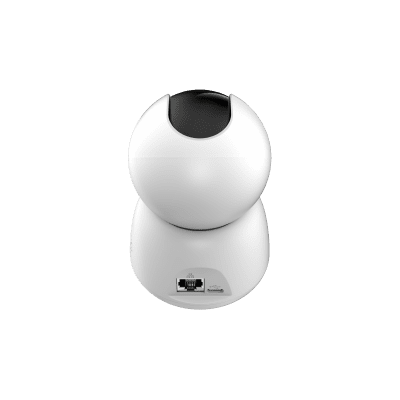

3MP Indoor Fixed-focal Wi-Fi Pan & Tilt Network Camera

1/3.2″ CMOS

Max. Resolution

2304 (H) × 1296 (V)

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Illumination Distance

Up to 10 m (32.81 ft) (IR)

Illuminator On/Off Control

Auto

Illuminator Number

1 (IR LED)

Angle Adjustment

Pan: 0° to 350°

Tilt: -5° to 80°

Lens

Max. Aperture

F2.0

Field of View

2.8 mm: H: 99°; V: 55°; D: 117°

3.6 mm: H: 79°; V: 43°; D: 94°

Intelligence

Human Detection

Yes

Video

Video Compression

H.265

Video Frame Rate

Main stream: 2304 × 1296@(1-25/30 fps)
sub stream: 640 × 360@(1-25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Resolution

3M (2304 × 1296); nHD (640 × 360)

Video Bit Rate

H.265: 40 kbps–4096 kbps

Day/Night

Auto(ICR)/Color/B/W

WDR

DWDR

Motion Detection

Yes

Image Rotation

0°/180°

Audio

Built-in MIC

Yes

Built-in Speaker

Yes

Audio Compression

G.711a

Network

Network Port

RJ-45 (10/100 Base-T)

Wi-Fi

IEEE 802.11b/g/n/ax 2.412-2.472 GHz, 2.4 G,≤20dBm@2400-2483.5MHz

Storage

Micro SD card (up to 256 GB)

Management Software

DMSS

Mobile Client

iOS;Android

Certification

Certifications

CE

Power

Power Supply

5 VDC, 1 A

Power Consumption

Basic: 1.6 W
Max.: 3.8 W (live + IR + PT rotation)

Environment

Operating Temperature

–10 °C to +45 °C (+14 °F to + 113 °F)

Operating Humidity

≤95%

Structure

Casing Material

Plastic

Product Dimensions

φ84 mm × 123.8 mm (φ3.31″ × 4.87″)

Net Weight

206.5 g (0.46 lb)
