Description

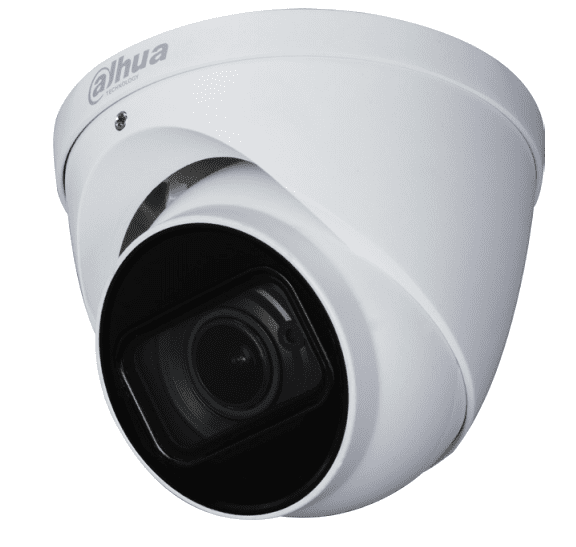

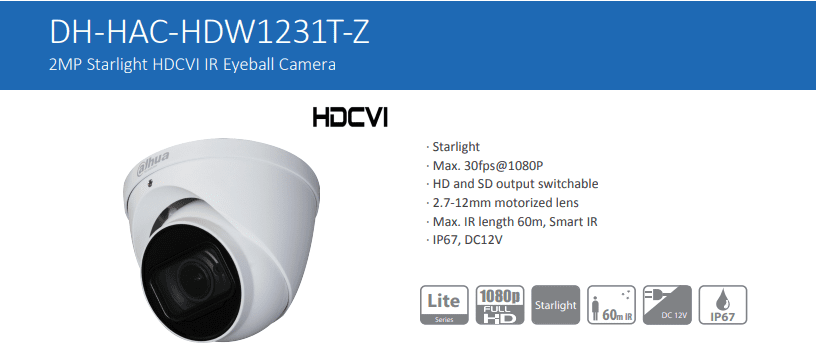

DAHUA 2MP DH-HAC-HDW1231T-Z Starlight HDCVI IR Eyeball Camera

System Overview:
Experience 1080P full HD video and the simplicity of using existing cabling
infrastructure with HDCVI. The 1080P starlight HDCVI camera presents
a high quality image with rich details even under extreme low-light
conditions. Also, the Lite series features compact design and friendly
price. It offers various motorized vari-focal/fixed lens models with a
multi-language OSD and HD/SD switchable output. Its structural flexibility
and high cost-performance makes the camera an ideal choice for SMB
solutions.
Functions
4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals to be transmitted over 1 coaxial
cable simultaneously, i.e. video, audio*, data and power. Dual-way data
transmission allows the HDCVI camera to interact with the XVR, such as
sending control signal or triggering alarm. Moreover, HDCVI technology
supports PoC for construction flexibility.
* Audio input is available for some models of HDCVI cameras.
Long Distance Transmission
HDCVI technology guarantees real-time transmission at long distance
without any loss. It supports up to 800m(1080P)/1200m(720P) transmission via coaxial cable, and up to 300m(1080P)/450m(720P) via UTP
cable.*
*Actual results verified by real-scene testing in Dahua’s test laboratory.
Simplicity
HDCVI technology inherits the born feature of simplicity from traditional
analog surveillance system, making itself a best choice for investment
protection. HDCVI system can seamlessly upgrade the traditional analog system without replacing existing coaxial cabling. The plug and
play approach enables full HD video surveillance without the hassle of
configuring a network.
Starlight
With the adoption of high performance sensor, the camera is able
to provide incomparable performance even under extreme lowlight
environment. The starlight feature allows more details to be captured
and accurate color to be recognized at night or in scenes with limited
illumination.
Smart IR
The camera is designed with IR LED illumination for best lowlight
performance. Smart IR is a technology to ensure brightness uniformity in
B/W image under low illumination. Dahua’s unique Smart IR adjusts to the
intensity of camera’s infrared LEDs to compensate for the distance of an
object, and prevents IR LEDs from overexposing images as the object come
closer to the camera.
Multi-formats
The camera supports multiple video formats including HDCVI, CVBS and
other two common HD analog formats in the market. The four formats can
be switched over through OSD menu or by PFM820(UTC controller). This
feature makes the camera to be compatible with most end users’ existing
HD/SD DVRs.
Multi-language OSD
OSD menu provides multiple image adjustments and function settings
to meet the requirements of different monitoring scenes. The OSD menu
includes configurations such as backlight mode, day/night, white balance,
privacy mask and motion detect. The camera supports 11 languages for
OSD menu, namely, Chinese, English, French, German, Spanish, Portuguese,
Italian, Japanese, Korean, Russian and Polish.
Protection
The camera’s outstanding reliability is unsurpassed due to its rugged design.
The camera is protected against water and dust with IP67 ranking, making it
suitable for indoor or outdoor environments.
With working temperature range of -30 °C to +60 °C (-22 °F to +140 °F), the
camera is designed for extreme temperature environments.
Supporting ±30% input voltage tolerance, this camera suits even the
most unstable power supply conditions. Its 4KV lightning rating provides
protection against the camera and its structure from the effects of lightning.
